A3 Tools Guide

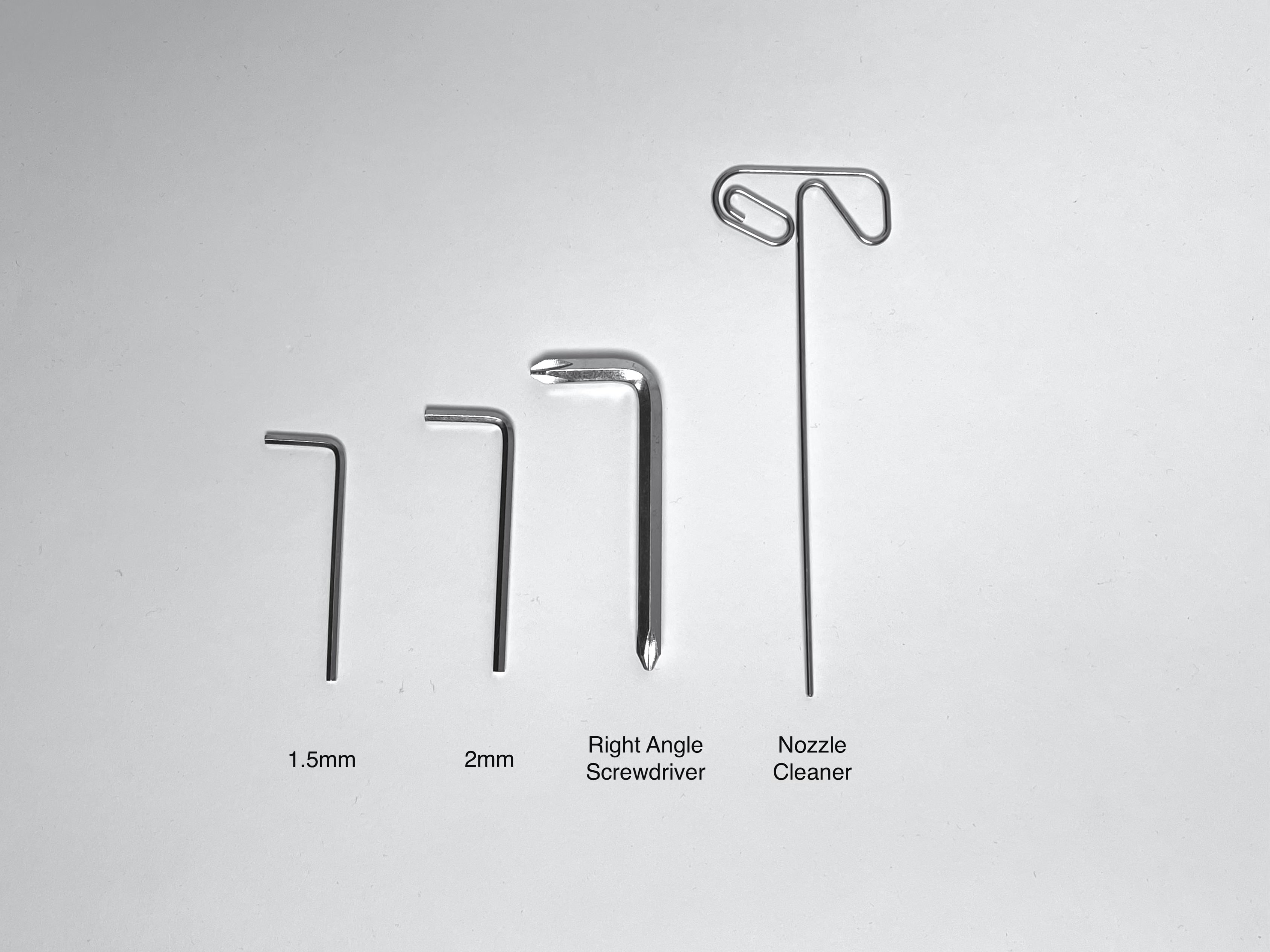

Tools Overview

---

Nozzle Cleaner

• For instructions on how to unclog your A3, click here.
• If you need a nozzle cleaner, let us know your current address and we can send you one!

---

Right Angle Screwdriver

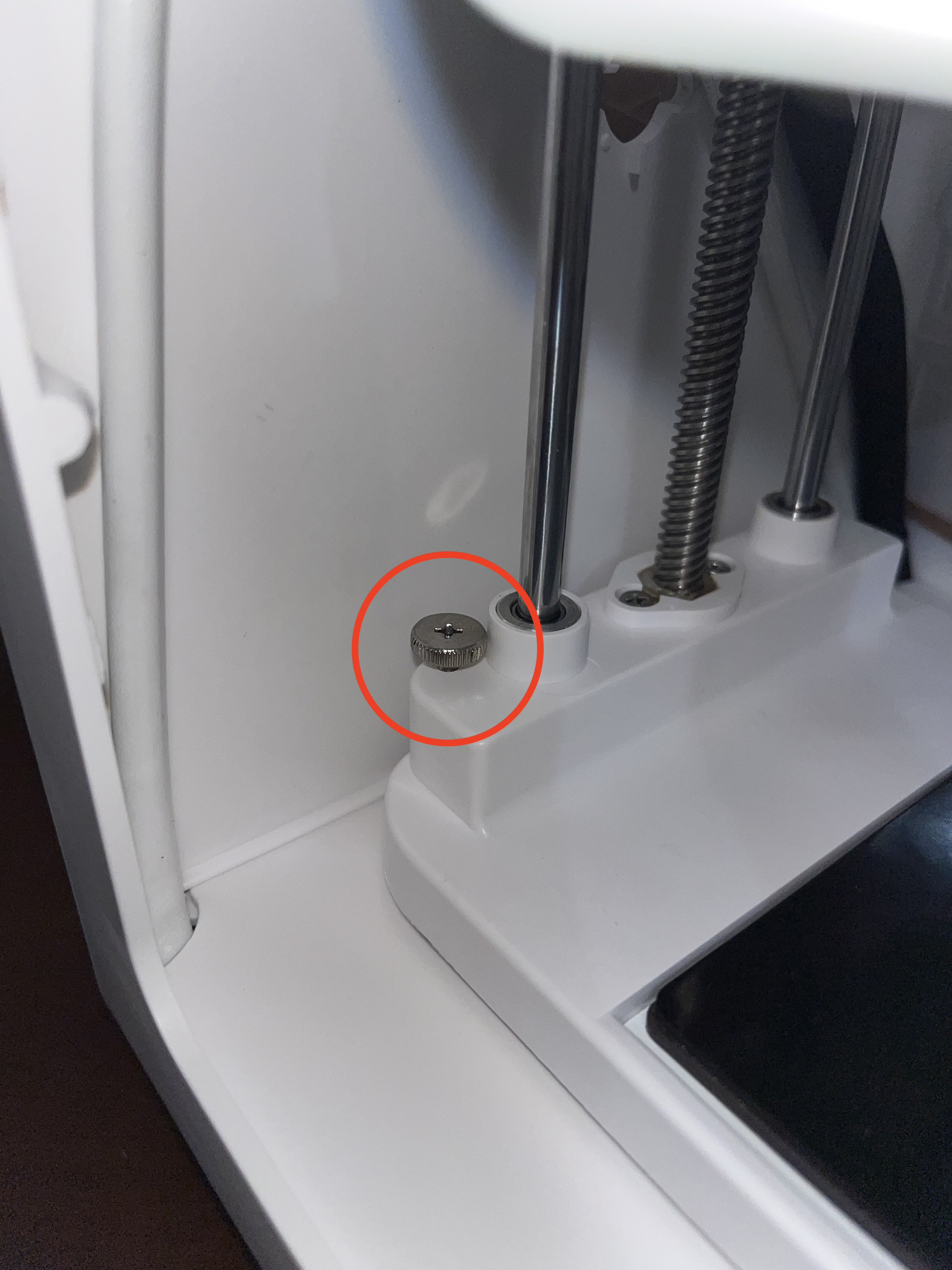

• This screw changes the calibration of the printer.
• If your calibration screw looks different than in the photo, you likely have a different Toybox model. Click here to check.

---

2mm Hex Key

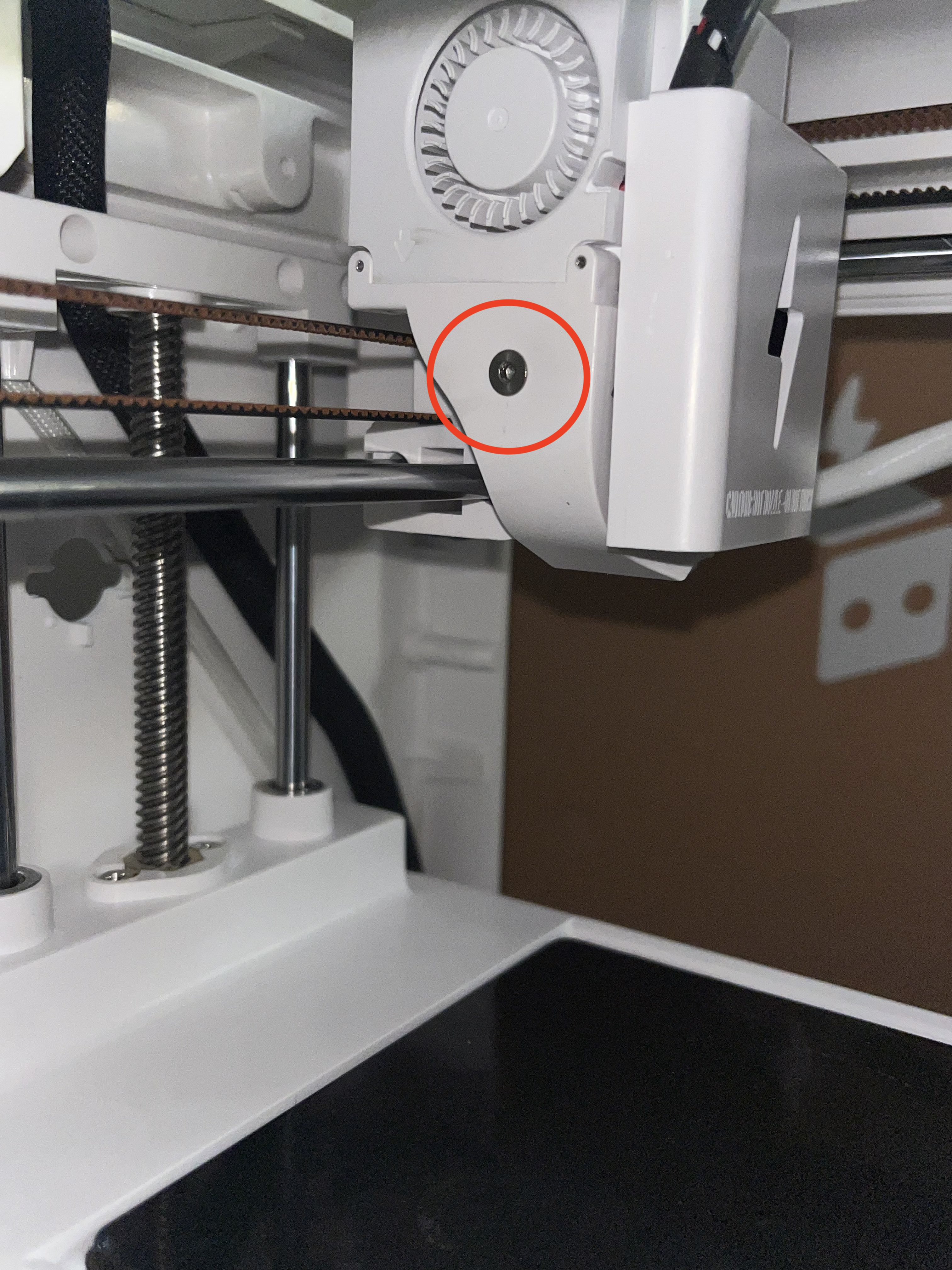

• Used for the majority of the screws on the printer, specifically around the nozzle cover on the right and left side of the nozzle.

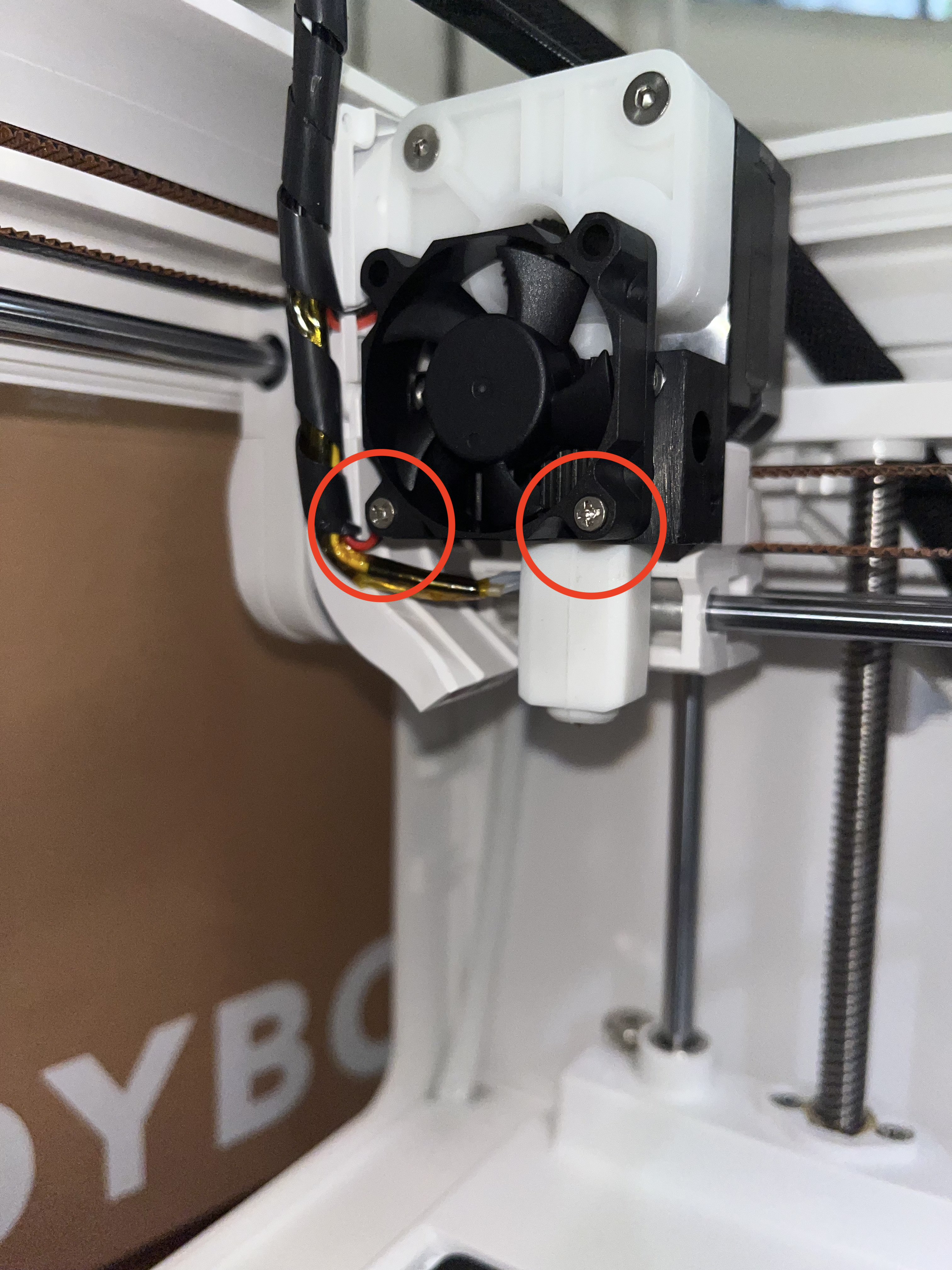

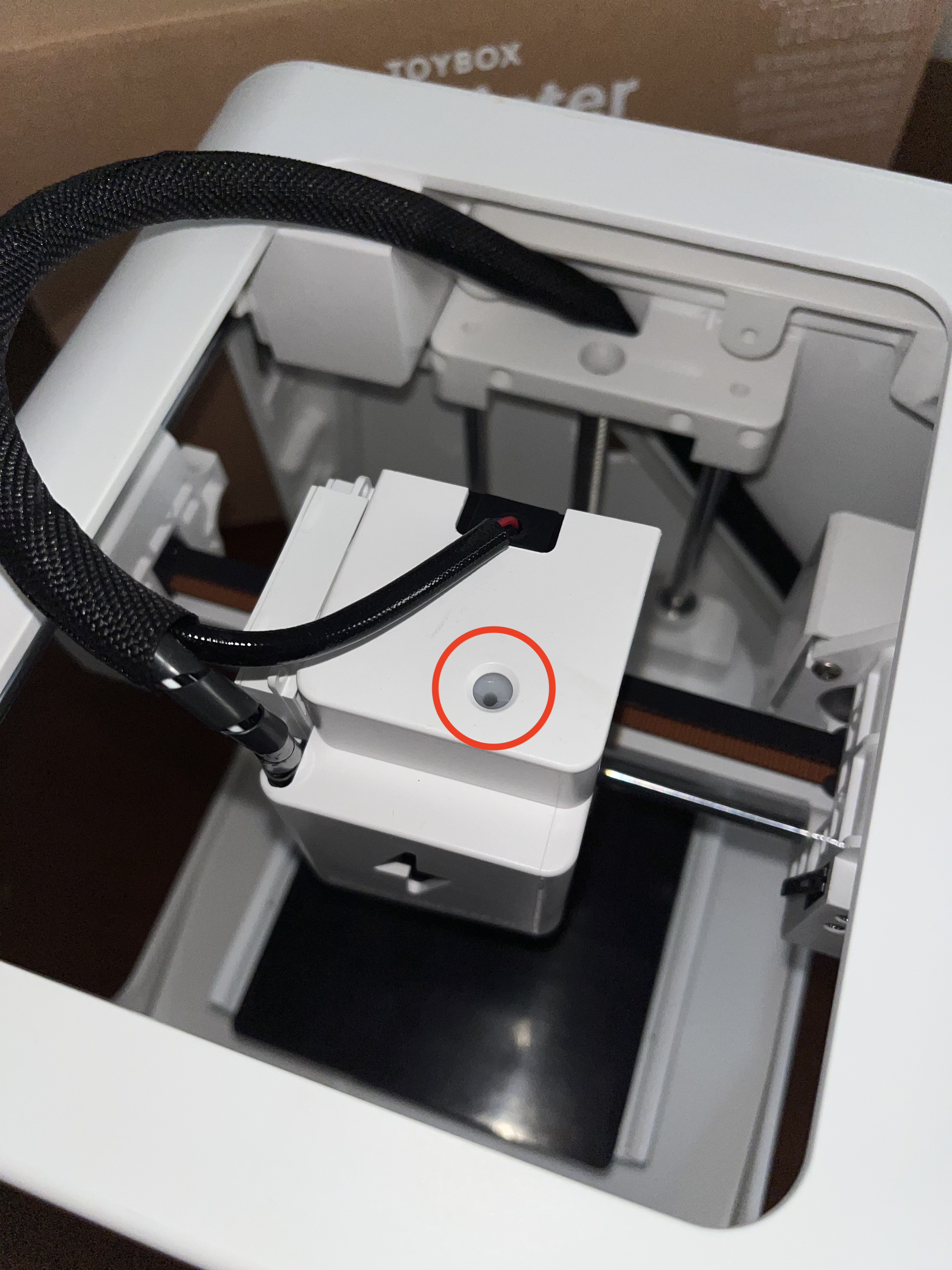

• The 2mm hex key will also fit in the front fan screws, the two screws at the top of the nozzle, and the screws underneath the print bed.

---

1.5mm Hex Key

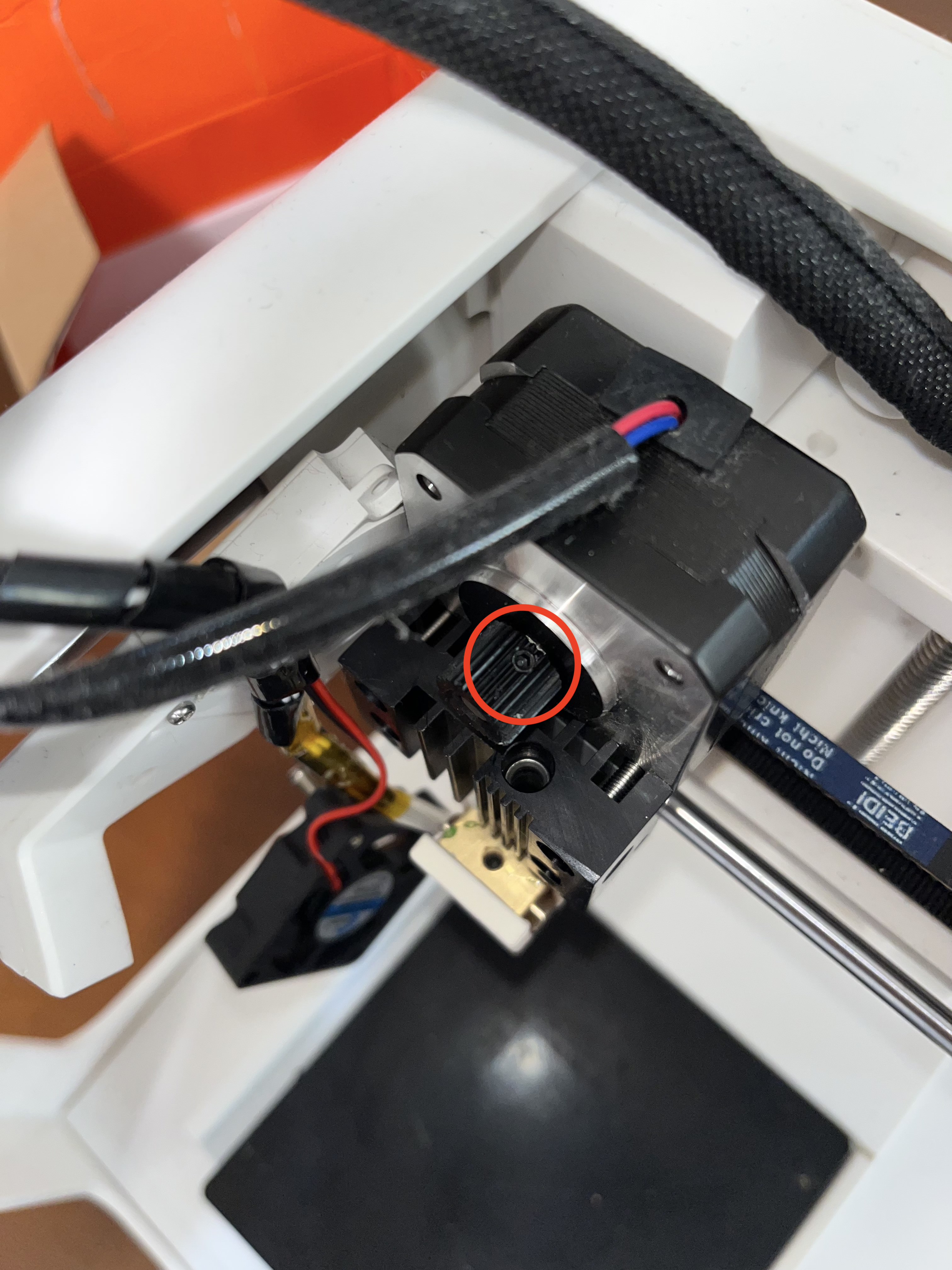

• Used for the gear screw
